Merrithew SPX Max Plus Reformer Package

Merrithew SPX Max Plus Reformer Bundle

Overview

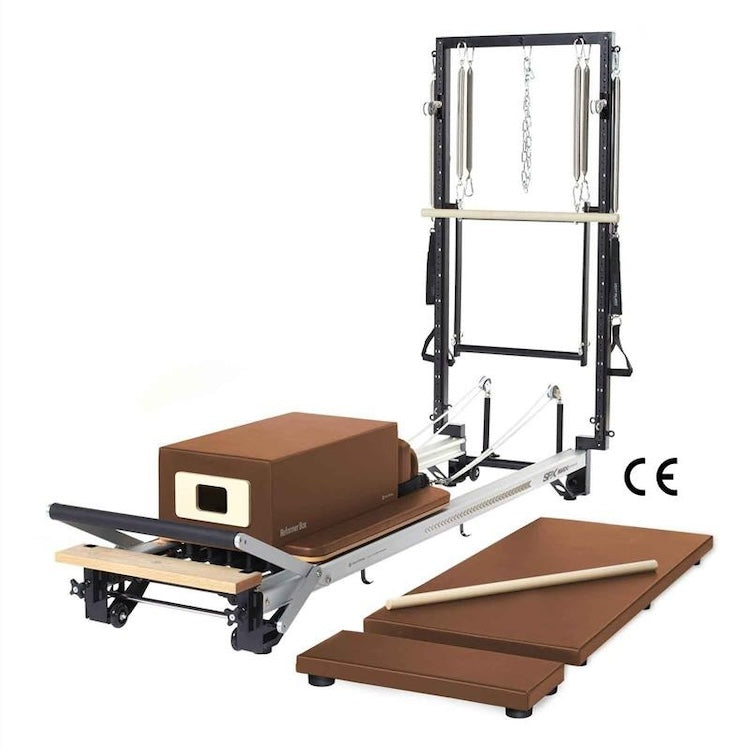

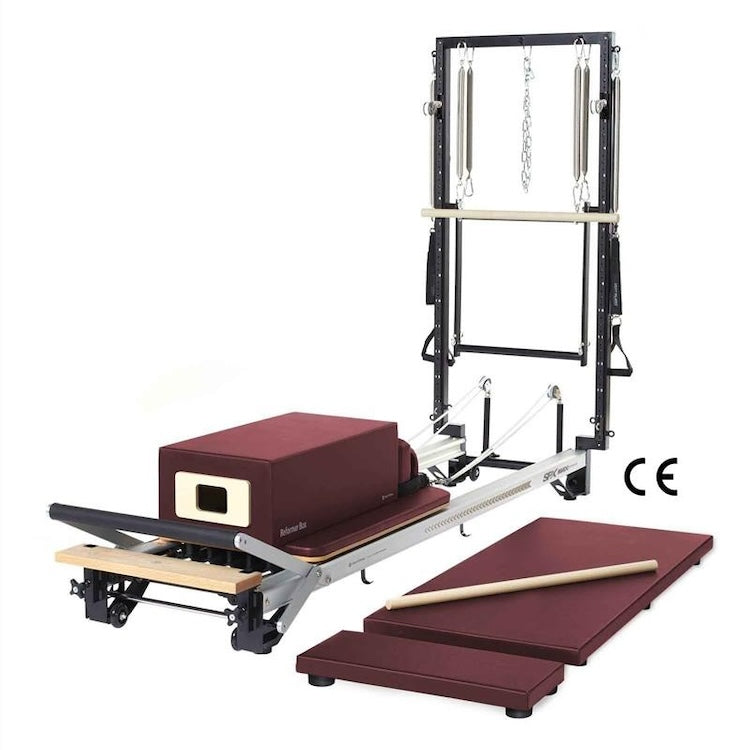

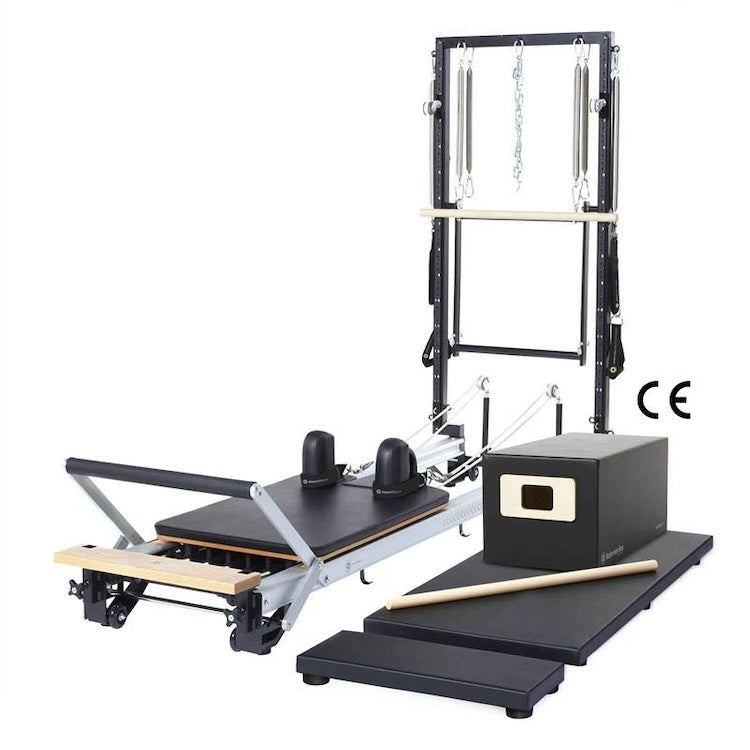

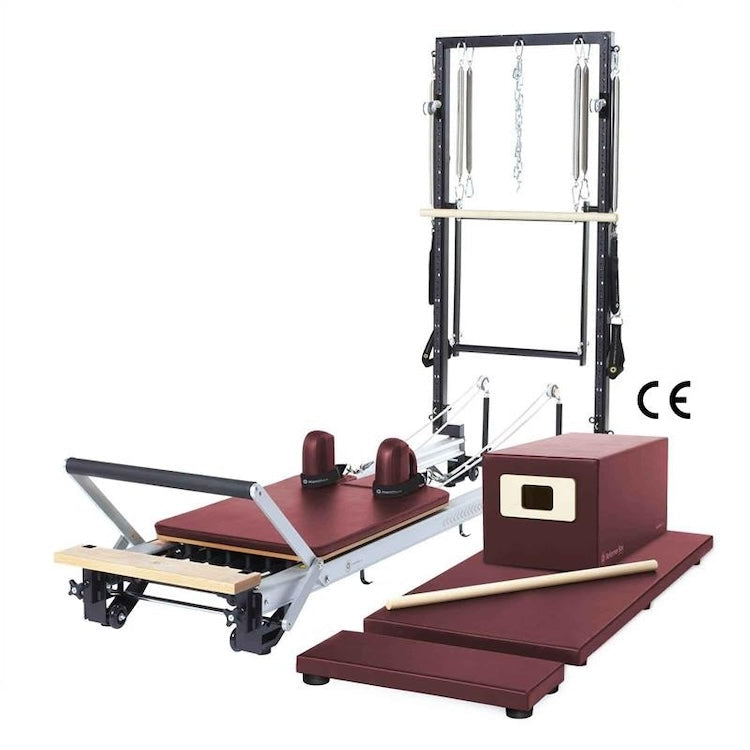

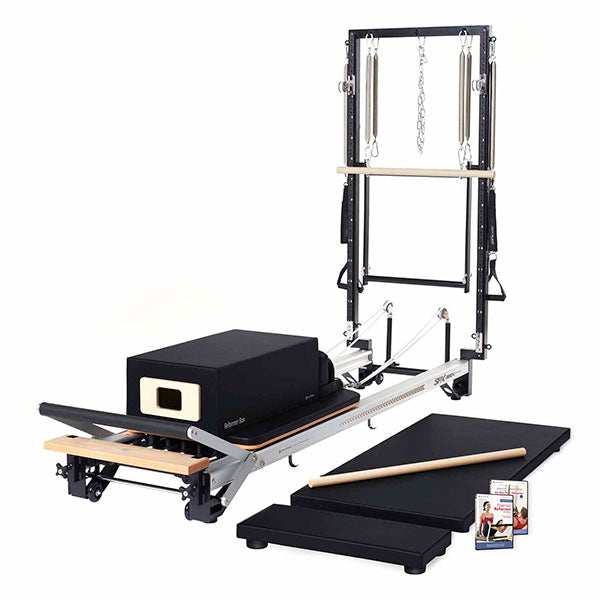

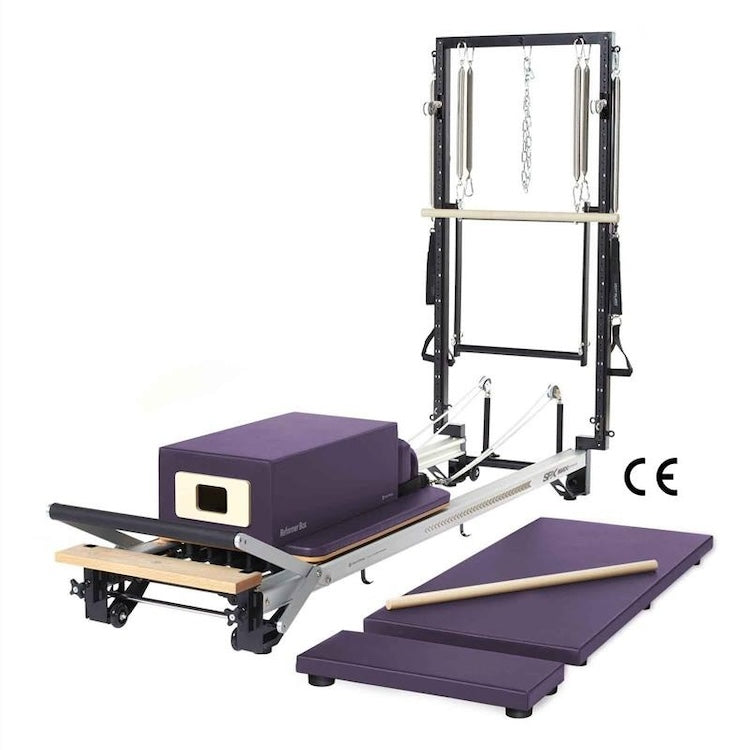

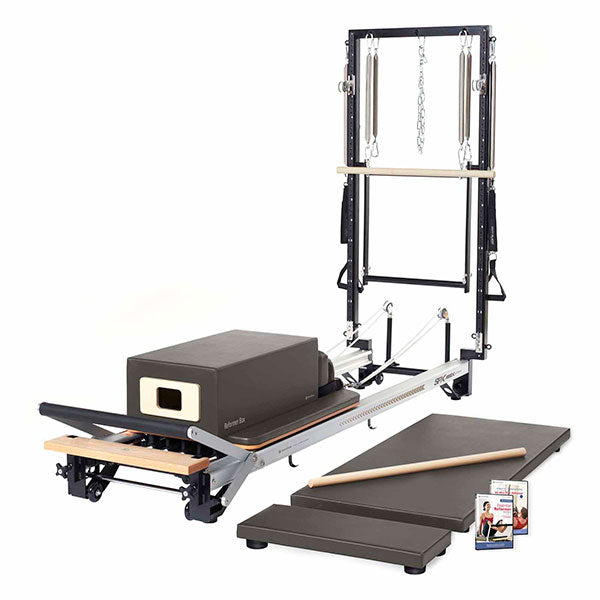

The SPX® Max Plus Reformer is a studio-grade reformer that combines a traditional reformer with vertical-frame functionality to deliver three-dimensional movement. It features a patented retractable rope system and traveling pulleys to vary resistance angles, saving space while expanding exercise options for users at any fitness level.

Benefits

• Save space by getting reformer and Cadillac-style options in a single unit.
• Expand movement variety so exercises mimic daily functional patterns and sport-specific motion.
• Reduce setup and adjustment time with recoiling ropes and easy gearbar/footbar positions.
• Train more comfortably thanks to smooth carriage travel and padded surfaces.
• Count on reliable studio use with durable materials that reduce downtime and maintenance.
• Move and store the reformer easily using built-in wheels and a stackable design when the vertical frame is removed.

Features

• Patented Retractable Rope System with recoiling rope reels for quick length adjustments and increased range of motion.
• Traveling pulleys on the vertical frame to provide variable resistance angles and three-dimensional movement.
• Mat converter and padded platform extender for floor-based exercises and added versatility.
• High-precision springs package with five Reformer springs: 3 × 100%, 1 × 50%, 1 × 25%.
• Neoprene spring covers to reduce noise; soft reformer loops included.
• Carriage that glides on C-channel aluminum rails with a patented rolling mechanism for smooth, low-friction movement.
• Adjustable four-position footbar and three-position gearbar for easy tension and range adjustments.
• Multiple stop and position options: 6 carriage stopping positions, 3 headrest positions, 4 footbar positions.
• Shoulder rests that stay secure in use and detach for storage; pommel-style rests for added support.
• Easy-roll wheels on both ends for simple repositioning and a rolling base option for stacked storage.
• Stackable when the vertical frame is removed; reinforced pulleybars detach and store without disengaging ropes.
• Minimal assembly required.

Specifications

• Reformer width: 26.5 in
• Reformer length: 97 in
• Reformer weight: 128 lbs
• Carriage width: 22 in
• Carriage length: 38.5 in
• Carriage height from floor: 9 in
• Vertical frame width: 28.3 in
• Vertical frame height: 68.5 in
• Vertical frame weight: 36 lbs
• Weight capacity: 350 lbs
• Wood standing platform: 1 in (25 mm) thick maple-style platform
• Upholstery: durable vinyl with dense EVA foam for comfort and proprioceptive feedback
• Included in the package:
  • Vertical frame
  • Mat converter
  • Reformer box with footstrap
  • Padded platform extender and maple roll-up pole
  • High precision springs package – 5 Reformer springs (3 × 100%, 1 × 50%, 1 × 25%)
  • 5 neoprene spring covers
  • Soft reformer loops
  • Patented retractable rope system
  • Carriage stopper
  • Easy-roll wheels on both ends
• Materials and construction notes:
  • C-channel aluminum rails and patented rolling mechanism for smooth glide
  • Baltic birch wood components; natural variations (knots, streaks, patches) are normal and do not affect integrity
• Warranty:
  • Limited lifetime warranty on aluminum rails, frame components and welding, standard gearbar and footbar mechanisms (excludes rubber footbar)
  • 90 days: upholstery
  • 1 year: ropes, straps, spring clips, plastic pulley bar receptacle sleeves, comfort footbar, spring covers and plastic spring holders
  • 2 years: all other reformer components
